Mobile Desktop

  • Specification
    •
  • Outstanding
     Performance
    		•

  • Efficient Connecting
     /Communication
    		•

  • Home Entertainment
    		•

  • Convenience and
     Simplicity
    		•

  • Heat Dissipation
    		•

  • DeskNote Side View
    		•

  • External Battery
    		•




    Specification Top

     Processor  Core Logic
  • Intel Pentium 4 processor with 256KB on-die L2 cache on
     0.18u process technology speed at 1.4/1.5/1.6/1.7/1.8/1.9/
     2.0GHz, Willamette core
  • Intel Pentium 4 processor with 512KB on-die L2 cache on 0.13
     process technology speed at 2.0/2.2/2.4/2.6/2.8GHz,
      Northwood core
  • Socket 478 package, 400MHz system bus
    		•
  • SiS 650 & SiS 961, 4X AGP bus interface, supports host bus at
     400MHz
  • ACPI V1.0b, AGP V2.0 and 3.3V PCI version 2.2 compliant
  • 533MB/s high bandwidth MuTIOL between SiS 650 & SiS 961
    		•
     System Memory  BIOS
  • 128/256/512MB DDR-RAM for Factory/Dealer installed
  • Upgradeable to 1GB on one DIMM socket, support DDR 266/
     PC2100 specification, (DDR333) verified
    		•
  • AMI 512K Flash BIOS, supports password, Plug & Play, ACPI
     and DMI
  • Bootable from USB FDD and CD-ROM
    		•
      Display  Optical Storage
  • 15.0" XGA TFT-LCD with 1024x768 resolution (16.7M
     colors)
  • 15.0" TFT-LCD with 1400x1050 resolutions
    		•
  • Equipped with 8X DVD-ROM, 12.7mm height
  • Factory option: 24X CD-ROM, CD-RW and Combo Drive (DVD-
     ROM + CD-RW)
    		•
     Video & Graphic  Audio
  • Built-in SiS 315 graphic core and AGP 4X supported
  • High performance 256bit 3D graphics engine up to 143MHz 3D
     engine clock speed
  • Video bridge supported by SiS 301LV, TV-Out function provided
  • Share Memory Architecture supports up to 64MB DDR frame
     buffer
    		•
  • Dual full-duplex Direct Sound Channels
  • Hardware SoundBlaster Pro for real-mode DOS legacy
     compatible
  • Support 6 channels of AC'97 2.2 compliance audio for 5.1
     channel Dolby Digital Material
  • Built-in two high quality stereo speakers with chamber and
     mic.
    		•
     Hard Disk Drive  Communication
  • ATA33/66/100 and Enhanced IDE (PIO mode 4) supported,
     2.5" 9.5mm height
  • Upgradeable easily, optional capacity of 15/20/30/40GB
    		•
  • Onboard full duplex 10/100 Base-T ethernet, MAC: SiS 961
     built- in
  • 56K / V.90 Conexant PCI software data/fax modem
  • Built-in SIR transceiver module, IrDA 1.3 standard compliant up
     to 4.0Mbps
    		•
     Pointing Device & Keyboard  IEEE 1394
  • Synaptics touch pad with scrolling up/down button
  • 12 function keys and Windows function key, 19mm key pitch
  • 2 shortcut keys (Internet and E-Mail), 3.0mm key travel,
     inverted-T cursor layout
    		•
  • Incorporates with one 1394 port supporting power, transfer rate
     up to 400Mbps
  • 1394 OHCI v1.0 and v1.1 compliant
  • Integrated IEEE 1394 OHCI-link and three ports of IEEE 1394
     PHY
    		•
     USB 1.0/2.0 Future Support  I/O Interface
  • Incorporates with four USB 2.0 ports, transfer rate up to
     480Mbps
  • Integrated 2 UHCI host controller for full-speed (12Mbps) and
     low-speed (1.5Mbps) USB device
  • Integrated 1 EHCI host controller for high-speed
     (480Mbps) USB device
    		•
  • 1 x Parallel port
    		•
  • 1 x External
     VGA port
    		•
  • 1 x RJ-45
     for Ethernet
    		•
  • 4 x USB 2.0
     ports
    		•
  • 1 x S-Video
      TV-Out port
    		•
  • 1 x SIR port
    		•
  • 1 x MIC-In jack
    		•
  • 1 x RJ-11 jack for
     Modem
    		•
  • 1 x 1394 port
    		•
  • 1 x headphone jack
    		•
  • 1 x 3-pin DC-In jack for AC adapter / external batter pack
    		•
     LED Indicator  Security
  • Power, Suspend/Resume, HDD, Number Lock, Caps Lock
     and Scroll Lock on/off
    		•
  • BIOS password protection and Kensington Lock hole provided
    		•
     External Battery  System Compliance
  • Optional external 12 Cells 2000mAh, 88Wh Li-lin battery pack
  • SMBus V1.1 implemented, battery low beep warning and 5
     LEDsdisplay supported
  • Dimension: 216 x 98 x 28 mm
  • PC2001, ACPI compliant
  • UL, TUV, CB-Report
  • Microsoft Windows XP / Windows 2000 Professional/ Windows
     ME/98SE compliant
    		•
     AC Adapter  Dimension & Weight
  • Input: 100~240 V AC, 50-60Hz universal
  • Output: 19V DC, 4.74A, 90W
    		•
  • 330 x 281 x 39.7(min) / 44.7(max) mm, 13.07" x 10.81" x 1.56"/
     1.76"
  • 3.18kg, 7.0 lbs (with 15.0" panel and DVD-ROM Drive installed)
    		•
     PowerManagement  Accessories
  • PC2001, ACPI compliant
  • Support suspend to RAM (S3), suspend to Disk (S4) and Soft
     Off (S5)
    		•
  • S-Video TV-Out Cable, Phone Cord, AC Adapter, Power Cord
     and Driver CD Title
    		•




    Outstanding Performance Top


    The latest P4 CPU

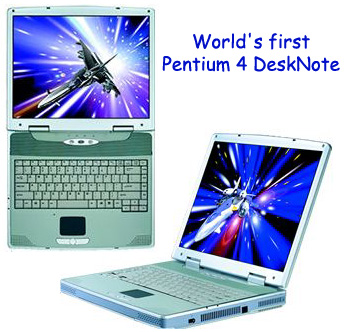

    Powered by the latest Intel Pentium 4 CPU with support frequencies up to 2.8GHz, the DeskNote A928 is the first P4 DeskNote computer in the world that offers the perfect computing power and incredible performance to professional users.

    The DeskNote A928 supports socket 478 Intel P4 processors from 1.4 to 2.8GHz including current Northwood core, which utilize the most advanced 0.13u process technology, delivering robust features and speed needed to run nowadays leading applications.


    DDR266 / PC2100 support (DDR333 verified)

    Equipped with one DDR DIMM sockets to support up to 1GB of DDR SDRAM, the DeskNote A928 can easily handle the most memory-hungry applications.


    Advanced SiS 650 chipset

    SiS650 chipset integrates a high performance host interface and 3D/2D Graphic Engine for Intel Pentium 4 processor. The SiS "Ultra-AGPII" technology can Interconnects the integrated VGA and memory controller with up to 2GB data transfer rate. Moreover, the MuTIOL technology also provides sufficient handwidth for connecting with SiS 650 and SiS 961.



    What is SiS MuTIOL Technology ?

    SiS MuTIOL technology, the new bus architecture, connects SiS 650 and SiS 961 together, and delivers 533MB/s handwidth between North Bridge and South Bridge and even up to 1.2GB/s for South Bridge internal bus frequency.



    Efficient Connectivity/ Communication Top

    The DeskNote A928 features high-speed data transmission, providing users with efficient and enhanced connectivity through IEEE 1394 and USB 2.0 ports.

    IEEE 1394

    Supporting and IEEE 1394 port, the DeskNote A928 allows fast data transmission up to 400Mbps of consumer electronics audio/video appliances, and provides enhanced connectivity for high-speed storage peripherals, and portable devices. The DeskNote A928 offers a way to connect all the digital products for digital video editing easily.


    USB 1.0/2.0 Future Support

    The DeskNote A928 supports four USB 1.0/2.0 future support ports to provide high-speed devices functions up to 480 Mbps, such as high-density storage devices, high-quality video conferencing cameras, and high-resolution scanners. (USB 1.1 backward compatible)


    Modem / LAN

    The DeskNote A928 also comes with both build-in 56K V.90 modem and 10/100 Base-T LAN networking so that web surfing and e-mail retrieval can be done anywhere and anytime.



    Home Entertainment System Top


    15" TFT-LCD

    Together with a huge 15.0" XGA / TFT LCD display, the DeskNote A928 provides high quality visuals and maximum viewing area with 1024x768 .

    3D / 2D Graphics Accelerator

    High performance 256-Bit 3D/128-Bit 2D Graphic Engine integrated
    Support SiS "Ultra-AGPII" technology with up to 2GB data transfer rate
    Advanced hardware acceleration for DVD Playback
    Superb graphics is achieved by AGP 4X interface, shared memory size up
    to 64MB
    Built-in high performance 333MHz RAMDAC and provides maximum
    graphic mode resolution up to 2048x1536 at true colors


    Enhanced Stereo Sound

    Two high quality stereo speakers with chamber are built-in to provide ideal audio capability.


    TV-Out Built-in

    The S-Video TV-Out function is built-in for easier management of business presentations or home entertainment. You can bring your experience onto your TV and it will becomes a perfectly high performance home entertainment system with TV-Out capabilities.




    Convenience and Simplicity Top



    User-Friendly Design

    In addition to 6 LED indicators, the DeskNote A928 also offers 2 shortcut keys allowing you to retrieve e-mail and surf the internet with just one touch of the button. Furthermore, the DeskNote A928 is designed to have a number of upgrade options such as CPU, HDD, memory and optical device.

    Magnetic Attraction Design

    To close the DeskNote A928, just gently push down the LCD cover. The rim of the cover provides a magnet which can attracts the hidden latch from the hole located on the edge of the body. When the latch is attracted, this will hook and lock the LCD cover instantly.

    Timeless Exterior

    The DeskNote A928 is designed to suit a variety of people. With a combination of appealing high-tech silver and light purple's scheme of color, the DeskNote A928 is neither too flashy to bring to the office nor dull to use it at school with friends.


    Heat Dissipation Top

    The DeskNote A928 comes with a stand at the bottom of the case which effectively improves the heat dissipation. Moreover, the numerous vents and aluminum heatsink with heat-pipes can also ensure effective heat dissipation. The DeskNote A928 has a temperature-controlled cooling fan which can reduce the noise.






    DeskNote Side View Top



    External Battery Top


    Allows the flexibilty of 2-3 hours of CONTINUOUS mobile use!
